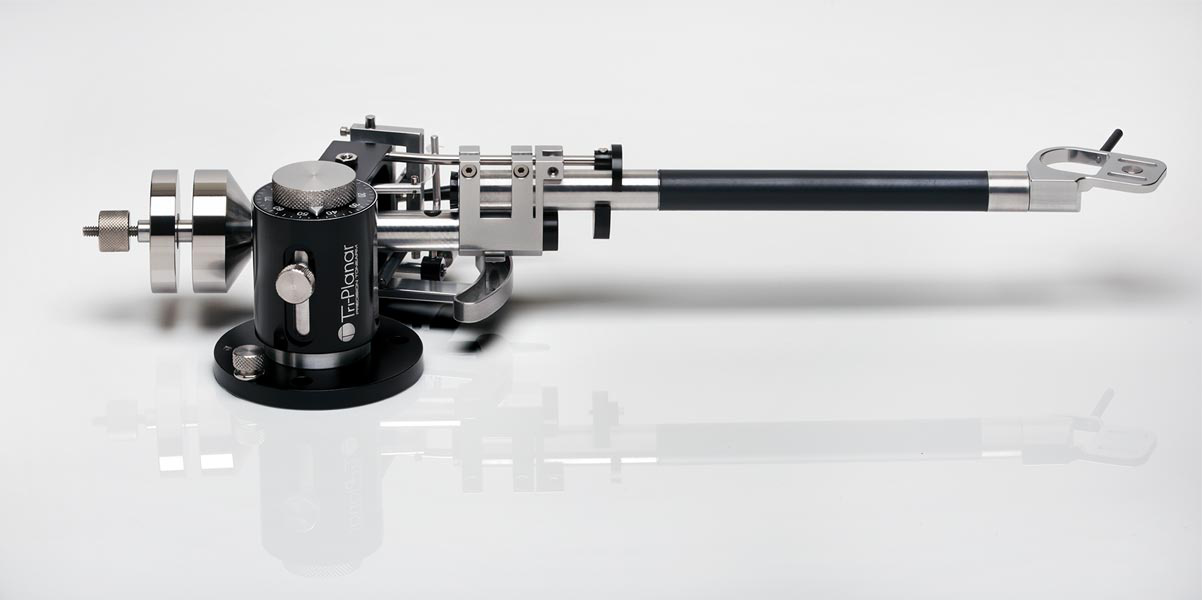

The unique dual-pivot design of this precision tonearm provides unrivaled tracking, transparency, and resolution.
The arm creates a musical sound stage unmatched by any other. It has been described as powerful and dynamic, solid yet expressive, delicate and tactile. The outstanding quality of this arm, commented on time and again, is that it is invisible, lacking the colorations that plague so many of our competitors.
Features
- 9.8" (250 mm) effective length
- Avionic gimbal bearings design
- Copper internal tonearm wiring
- Adjustable Vertical Tracking Angle (VTA)
- Adjustable Azimuth
- Damped head-shell
- Composite wand with coaxial damping
- Clamping yoke design that firmly couples the arm-tube to the bearing tube
- Silicone-fluid trough with adjustable dip stick
- Hardened and polished needle cones
- Bearings at record height
- Progressive anti-skating design
- Sophisticated system of decoupled counter weights
- Easy 3-screw installation, with no large VTA hole
- Available in black or silver color
Specifications
| Type: | Avionic gimbal bearings design |
|---|---|
| Effective Length: | 250mm |
| Pivot-to-spindle distance: | 233.5mm |
| Overhang: | 16.5mm |
| Offset angle: | 22° |
| Effective mass: | 11g |
| Bearing offset angle: | 22° |
Termination Options for All Tonearms
RCA Connector
10" RCA box
XLR Connector
5-pin Din connector
These accessories are also available for purchase from your local dealer or distributor.
Counterweight Shaft
Mounting Hardware
Mounting Jig
Allen Wrench Drivers
Silicon Syringe
Alignment Template
