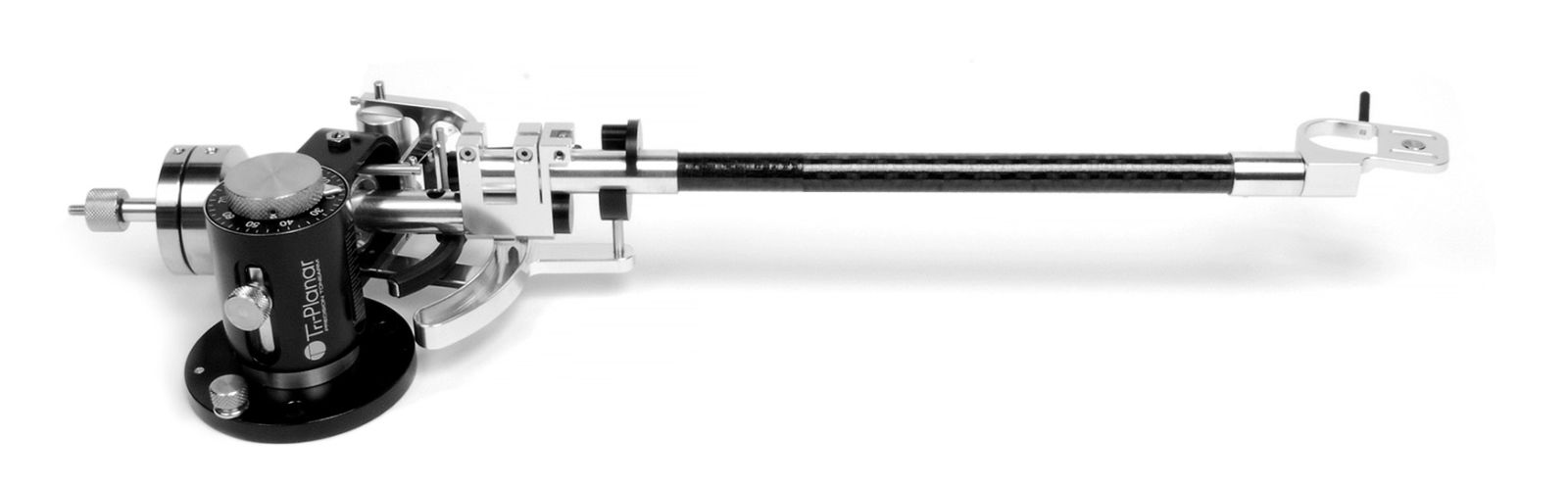

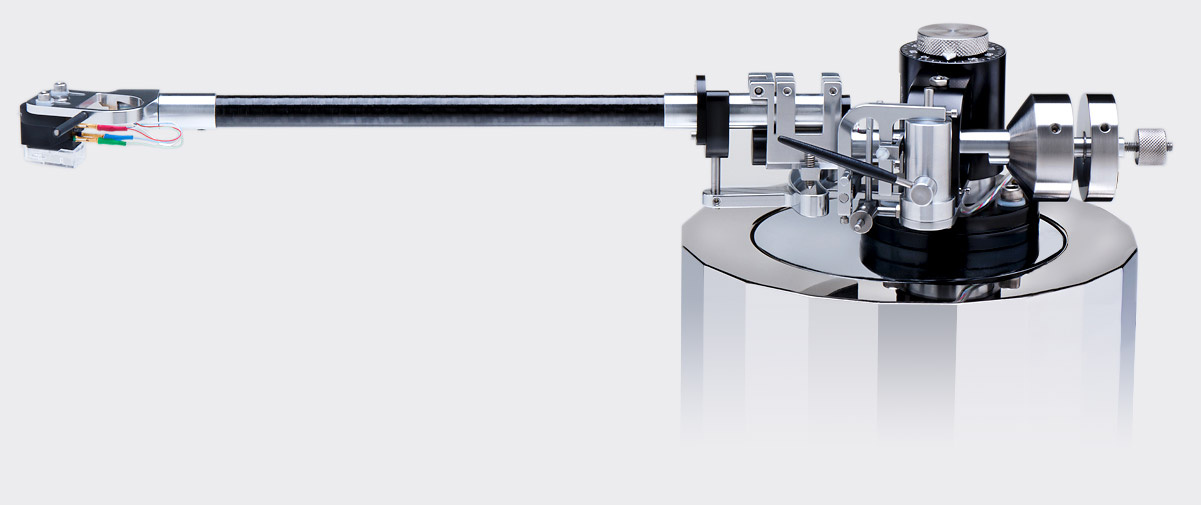

Based on the award winning tonearm with over 55 years of design excellence. The U-12 offers improved resolution, detail, dynamic range and provides a 27% angular error reduction over 9-inch tonearms.
Features
- 12″ (308.80mm) effective length
- Avionic gimbal bearings design
- Silver internal tonearm wiring
- Carbon fiber wand with coaxial damping
- Adjustable Vertical Tracking Angle (VTA)
- Adjustable Azimuth
- Damped head-shell
- Clamping yoke design that firmly couples the arm-tube to the bearing tube
- Rounded components for resonance control
- Larger silicone fluid trough with adjustable dip stick
- Tonearm rest integrated with damping trough for resonance reduction
- Hardened and polished needle cones
- Bearings at record height
- Progressive anti-skating design
- Sophisticated system of decoupled counter weights
- Easy 3-screw installation, with no large VTA hole
- Available in black or silver color
Specifications
| Type: | Avionic gimbal bearings design |
|---|---|
| Effective Length: | 308.80mm |
| Pivot-to-spindle distance: | 295.6mm |
| Overhang: | 13.2mm |
| Offset angle: | 17.6° |
| Effective mass: | 15g |
| Bearing offset angle: | 17.6° |
Termination Options for All Tonearms
RCA Connector
10" RCA box
XLR Connector
5-pin Din connector
These accessories are also available for purchase from your local dealer or distributor.
Counterweight Shaft
Mounting Hardware
Mounting Jig
Allen Wrench Drivers
Silicon Syringe
Alignment Template
